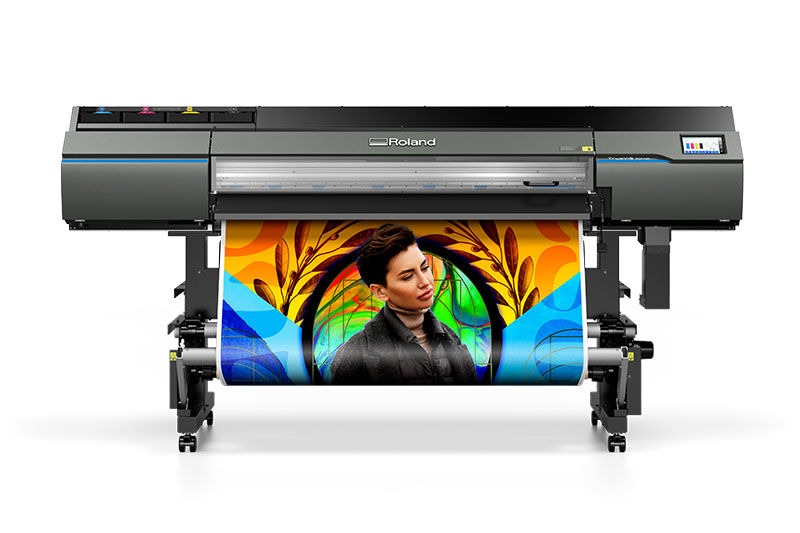

- Roland TrueVIS SG3-540
Customers Who Viewed This Product Also Viewed
Product Description
Available in two sizes to fit your business and budget, the latest SG3 series large format graphic printer/cutters have been enhanced to answer the ease and productivity needs of today’s sign and graphics providers. Expand your current operation or provide the right start in sign and graphics with the superior color and performance of next generation TrueVIS SG3 printer/cutters.
- User-focused enhancements with a 7-inch LCD touch-panel control, auto-calibration, and other automated tools
- Incredible print output with True Rich Color 3 to improve brand reproduction and provide ultra-vivid color with super-smooth transitions
- High-quality, 4-color print/cut results on signs, stickers, labels, vehicle wraps, apparel, and other graphics at a very low ink cost per sq/ft.
Product Specification
TrueVIS SG3 Series
| SG3-540 | SG3-300 | ||
|---|---|---|---|
| Printing Method | Piezo ink-jet method | ||
| Media | Width | 11.7 to 54 in. (297 to 1,371 mm) | 7.2 to 30 in. (182 to 762 mm) |
| Thickness | Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting |
||
| Roll outer diameter | Max. 9.8 in. (250 mm) | ||
| Roll weight | Max. 77 lb. (35 kg) | Max. 66 lb. (30 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||
| Printing/cuttin width (*1) | Max. 52.9 in. (1,346 mm) | Max. 28.9 in. (736 mm) | |
| Ink | Type | TrueVIS INK 500 ml pouch | |
| Colors | Four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||
| Cutting speed | 0.39 to 11.8 in/s (10 to 300 mm/s) | ||
| Blade force (*2) | 30 to 500 gf | ||
| Blade | Type | Roland CAMM-1 series blade | |
| Offset | 0.0 to 59 ml (0.000 to 1.500 mm) | ||
| Software resolution (when cutting) | 0.98 ml/step (0.025 mm/step) | ||
| Media heating system (*3) | Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) | ||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Rated input | 100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A | 100-120/220-240 Va.c. 50/60 Hz 5.4/2.7 A | |
| Power consumption | During operation | Approx. 1,090 W | Approx. 710W |
| Sleep mode | Approx. 50 W | ||
| Acoustic noise level | During operation | 63 dB (A) or less | |
| During standby | 53 dB (A) or less | ||
| Dimensions (Width x Depth x Height) |
103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm) | 79.7 in. x 29.5 in. x 52.0 in. (2,022 mm x 748 mm x 1,320 mm) | |
| Weight | 417 lb. (189 kg) | 331 lb. (150 kg) | |
| Environment | During operatio (*4) | Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation) | |
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation) | ||
| Included items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc. | ||
- *1 - The length of printing or cutting is subject to the limitations of the program.
- *2 - 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
- *3 - Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
- *4 - Operating environment（Use in an operating environment within this range.)
