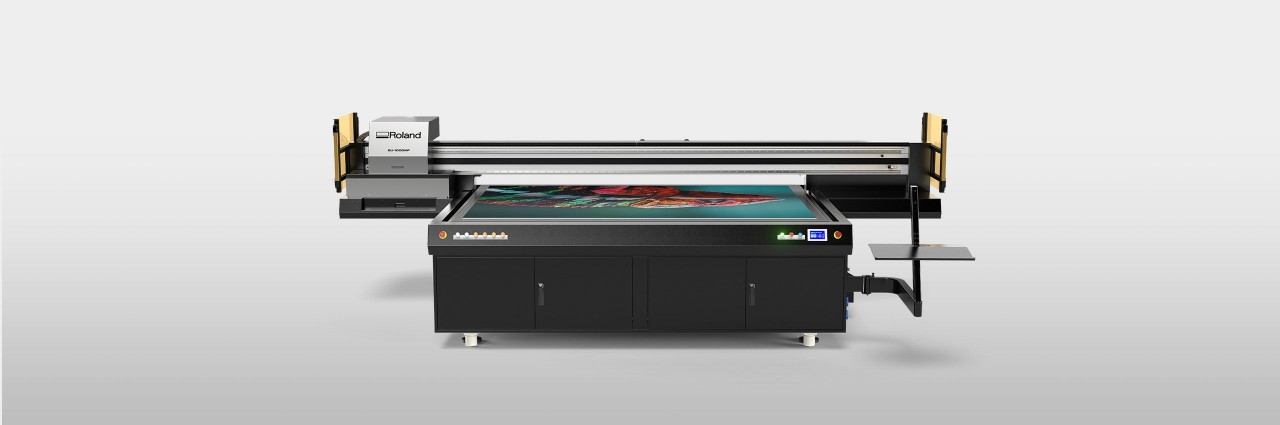

Roland EU-1000MF (4-Color)

item #SM178035238

$41,247.25
Quantity:



Product Description

The time is right, the machine is right, and the price is right to get into high-volume, large-format UV flatbed printing with the EU-1000MF. This versatile, incredibly productive machine lets you maximize output, expand your product offerings, and increase profitability. With the EU-1000MF flatbed, you can print high-quality graphics at high speeds directly onto a wide variety of substrates, including media up to 96 x 48 inches and 3.74 inches high.

  • Print on PETG, PVC board, foam board, wood, corrugated board, aluminum plate and more.
  • Rapid printing with a choice of a 4-color/ four print head, OR 6-color/ six print head models.
  • Reliable, high-quality printing with high-density, low-cost E-US-ink, a liquid cooled LED lamp system, 4-zone vacuum bed, and many more advanced features.
  • Comes with VersaWorks 6 RIP software – Roland DG’s most powerful, intuitive RIP to date – which includes a host of useful features and tools that optimize efficiency, productivity, and convenience.

Product Specification

Printing method
Piezo ink-jet method (6 stagged heads)
Acceptable mediaWidth Max. 96 in. (2,440 mm)
Length Max. 48 in. (1,220 mm)
Thickness Max. 3.74 in. (95 mm)
Weight Max. 99 lb./m2 (45 kg/m2)
Maximum printing width/printing length (*1) Max. 96 x 48 in. (2,440 x 1,220 mm)
InkType E-US
Colors 6 colors (Cyan, Magenta, Yellow, Black, White, Gloss)
4 colors (Cyan, Magenta, Yellow, Black)
Tank capacity 2.5 L
Bottle Capacity 1-Liter Bottles
Ink-curing unit Built-in UV-LED lamp
Printing resolution (dots per inch) Max. 720×600 / 720×900 dpi
Connectivity Ethernet 1000BASE-T for control PC only
Power Requirements AC 220 V, 50/60 Hz, 32 A (Single phase)
Acoustic noise levelDuring operation 80 dB (A) or less
Dimensions
(Width x Depth x Height)
180 x 83 x 58 in.
(4,556 x 2,100 x 1,470 mm)
Weight 2,870 lb. (1,300 kg)
EnvironmentDuring operation Temperature: 18 to 25 °C (64.4 to 77 °F), Humidity: 40 to 70 %RH (No condensation)
Included items Power cord, User's manual (Download), Software RIP (Download), Goggles, etc. USB Drive with PrintExp Software (Printer control software)

*1 - The maximem printing area can be extended to 96 x 48 in. (2,440 x 1,220 mm).
