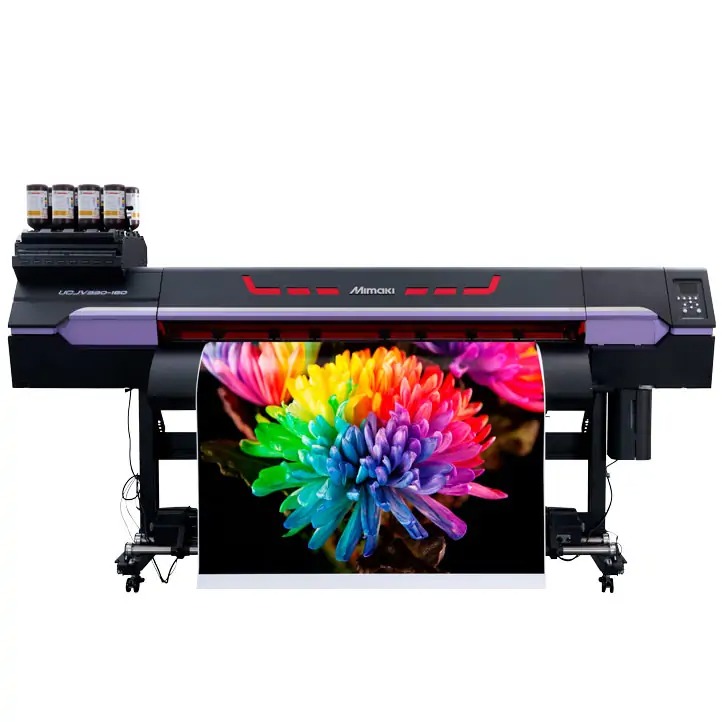

Mimaki UCJV330-160

item #SM178053596

$16,497.25
Quantity:


Product Description

Leading The Way For UV-LED Technology

The new UCJV330-160 integrated printer/cutter offers extremely versatile UV-LED roll-to-roll inkjet printing with significantly improved productivity and image quality for sign graphics applications. With production speeds of 301 sqft/hr for a four-color configuration or 194 sqft/hr with White and/or Clear inks, the UCJV330-160 enables users to provide their customers with impressive turnaround times and produce more jobs with increased efficiency. In addition, the high speeds achievable with this technology do not compromise the image quality. This is thanks to Mimaki’s newly developed patent pending ink ejection technology that reduces color irregularities in high density areas even in high-speed output mode.
  • Significantly improved image quality and productivity. Mimaki’s UV printing technology achieved high image quality even at high speeds.
  • Clear ink that expands the design potential makes it possible to produce high value-added printed deliverables. Furthermore, 2.5D print and watermark print functions have been added.
  • Support for up to 5-layer printing and it expands the range of applications and the added value of deliverables.
  • Equipped UV curable ink that does not require drying time after printing and a post-print cut function. Can be used for a wide variety of applications such as store decorations, posters, labels, stickers, pop-ups, etc.
  • “PICT” supports customers in improving the efficiency of their printing operations and production management by enabling them to visualize the operational status and performance of their printers from a PC or mobile device, even from a remote location.

Product Specification

Specifications

Print head

Two in-line on-demand piezo heads
Print Resolutions

600 dpi, 1200 dpi, 1800 dpi
Maximum Print Area

UCJV330-130: 53.5″ (1360 mm)
UCJV330-160: 63.4″ (1610 mm)
Maximum media width

UCJV330-130: 53.9″ (1370 mm)
UCJV330-160: 63.8″ (1620 mm)
Maximum Media Thickness

up to 1 mm
Maximum Media Weight

99.2 lbs. (45.0 kg)
Ink Type

U.S. & Canada- LUS-170, LUS-200
Mexico, Central & South America- LUS-175, LUS-200
Interface

Ethernet 1000 BASE-T (recommended), USB2.0 Hi-Speed
Power Supply

Single phase AC100-120V±10% /12A or
Single phase AC200-240V±10% /6A
50/60Hz±1Hz
Power Consumption

Max. 1,440W or less x1 / 800W (Continuous operation) / 4.5W or less (Sleep mode)
Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H)

UCJV330-130: 103.9 x 31.5 x 58.3″ (2,640 x 800 x 1,480mm)
UCJV330-160: 113.8 x 31.5 x 58.3″ (2,890 x 800 x 1,480 mm)
Weight

UCJV330-130: 478.4 lbs. (217 kg)
UCJV330-160: 500.4 lbs. (227)
Safety Standard

IEC 62368-1 Standard ETL
CB, CE (EMC Directive, Low Voltage Directive, Machinery Directive, RoHS Directive)
REACH, VCCI class A, FCC class A
KC, RCM, UKCA, EnergyStar
